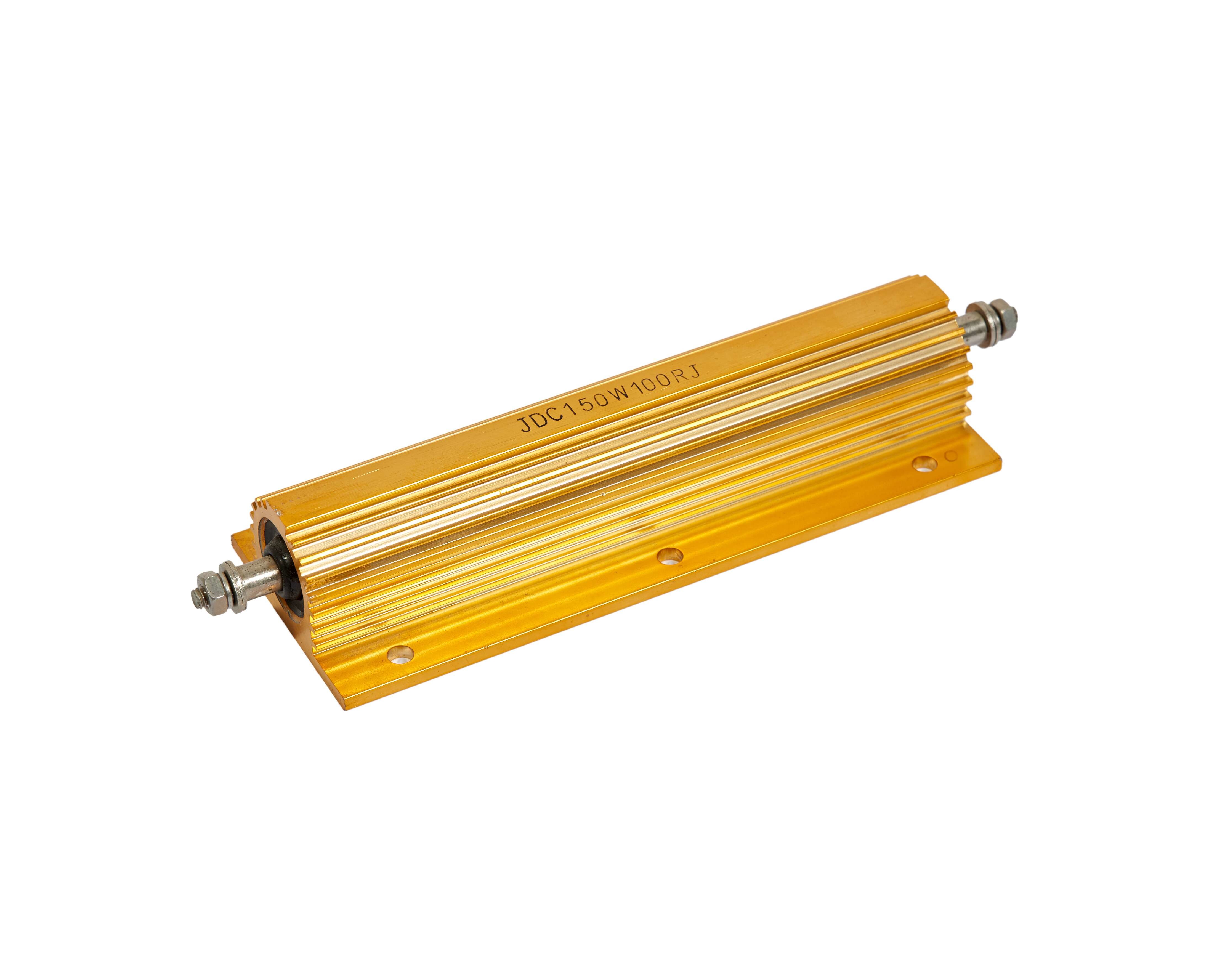

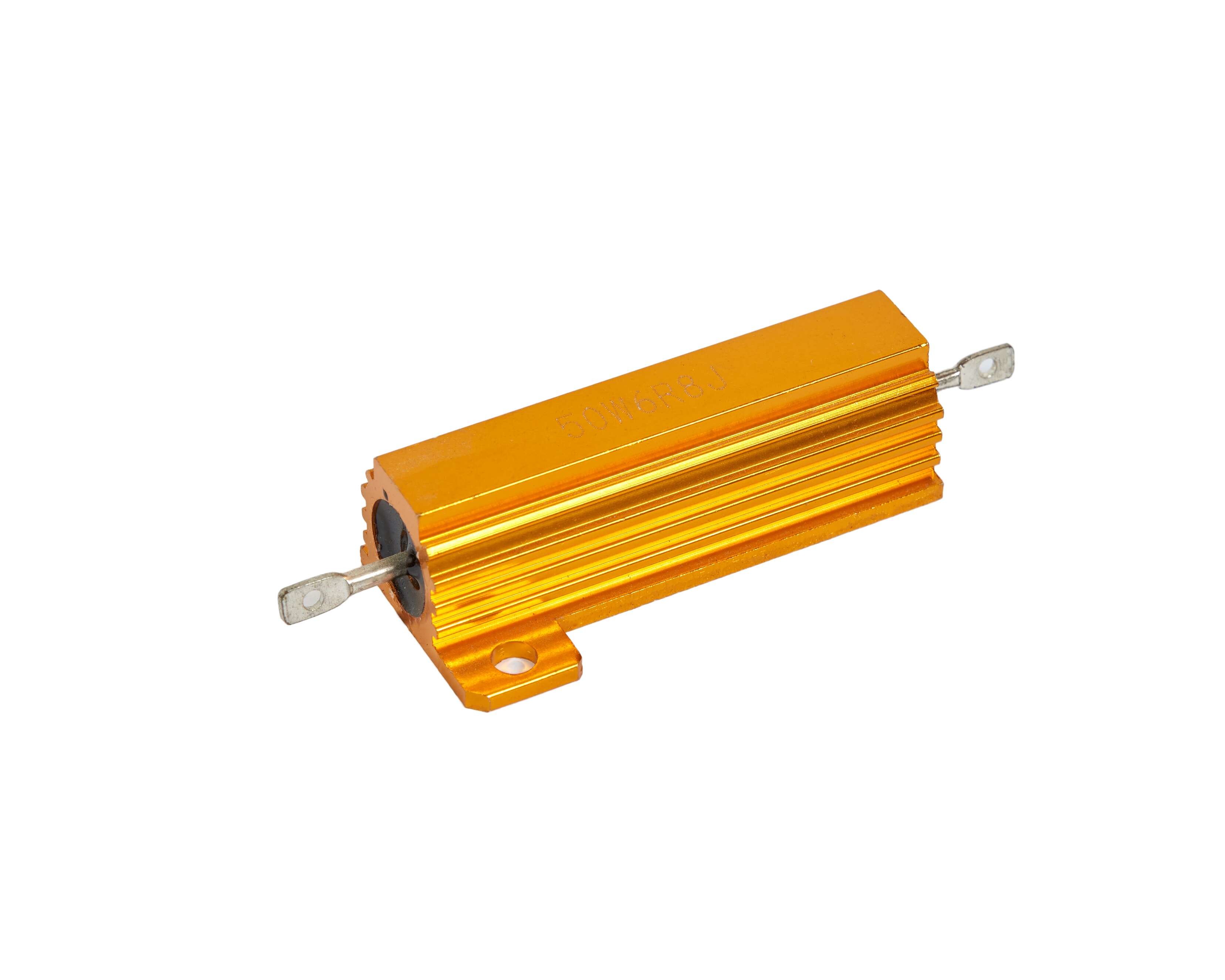

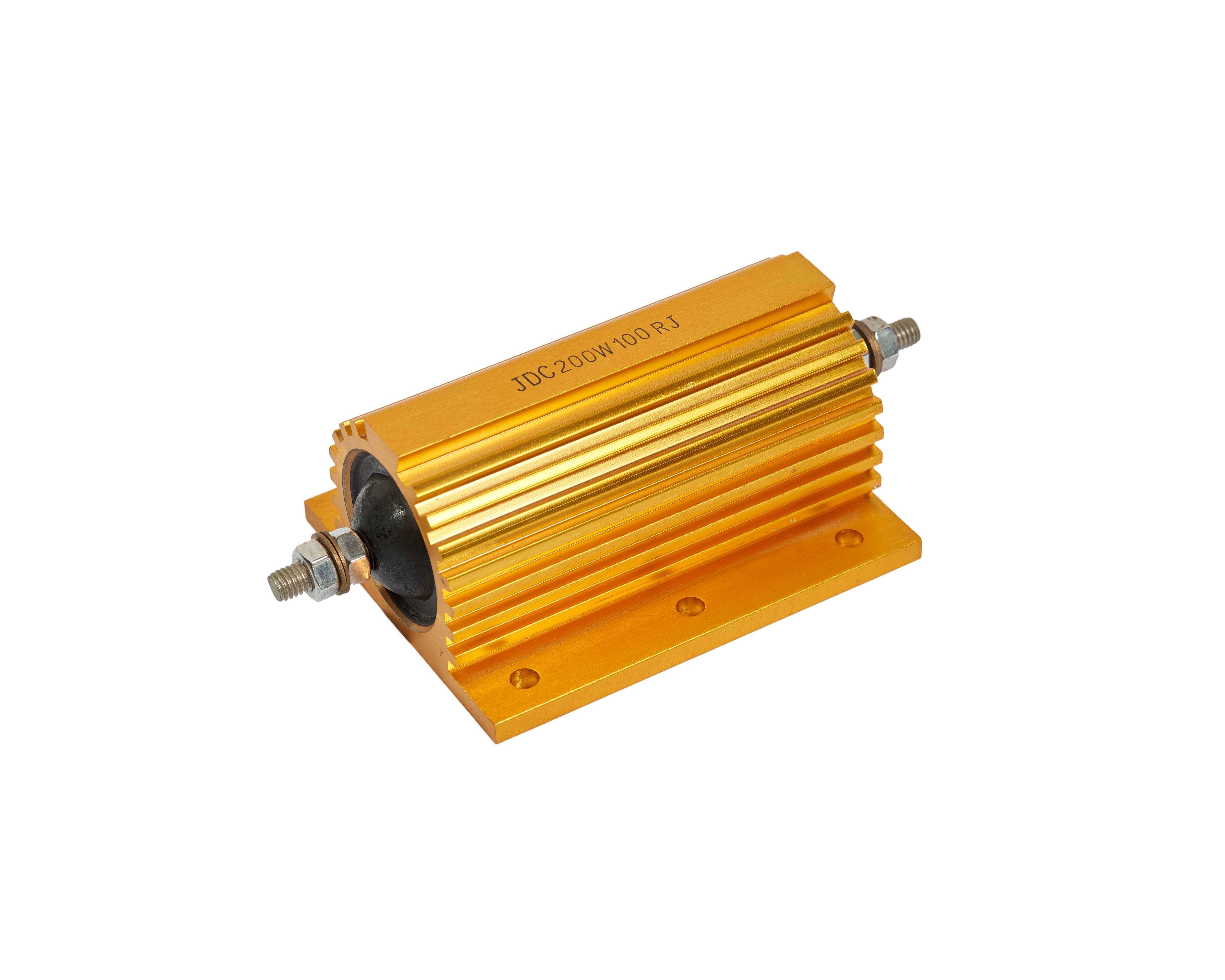

Heatsink Mounting Aluminium Clad Power Resistor 500W Excellent Pulse Handling

  • Heatsink Mounting Aluminium Clad Power Resistor 500W Excellent Pulse Handling
  • Heatsink Mounting Aluminium Clad Power Resistor 500W Excellent Pulse Handling
  • Heatsink Mounting Aluminium Clad Power Resistor 500W Excellent Pulse Handling
Place of Origin China
Brand Name JDC
Certification ROHS & Reach
Model Number RH
Minimum Order Quantity 100
Price US$3-$12 per pcs
Packaging Details Bulk in Cartons
Delivery Time 7-10 days
Payment Terms TT, L/C, Paypal, Western Union,
Supply Ability 1,000 Kpcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Rated Power Range 75W-500W Resistance 0.1R-100kR
Tolerance ±1%, ±2%, ±5%, Operating Temperature -55°C~275°C
TCR ± 20-150 Ppm/°C
Highlight

Heatsink Mounting Aluminium Clad Power Resistor

,

Aluminium Clad Power Resistor 500W

,

Pulse Handling heat sink resistor
Leave a Message
Product Description

Metal Clad Power Resistor, Heatsink Mounting, Excellent Pulse Handling



It is designed for maximum heat dissipation mounting solidly to metal chassis surface for maximum heat transfer. RH series are outstanding for their high power dissipation with precision tolerances in minimum physical sizes.

Lower hot spot ratings due to exclusive complete encapsulation of element within anodized aluminum body. RH series high-performance welded construction throughout assures long stable load life with threaded heavy stud axial-terminals.



Features:

  1. Rated Power: 25W, 50W, 75W, 100W, 150W, 200W, 300W, 500W
  2. Wide range of values from 0.05 Ω to 100 kΩ
  3. Temperature coefficient of resistance: ± 10-300 ppm/°C
  4. Resistance tolerance:± 1%,± 2%,± 5%
  5. Operating Temperature Range: -55°C to +275°C
  6. Non-inductive is available

Dimensions:



Heatsink Mounting Aluminium Clad Power Resistor 500W Excellent Pulse Handling 0

Heatsink Mounting Aluminium Clad Power Resistor 500W Excellent Pulse Handling 1

Heatsink Mounting Aluminium Clad Power Resistor 500W Excellent Pulse Handling 2

Heatsink Mounting Aluminium Clad Power Resistor 500W Excellent Pulse Handling 3
